A meat and bone rendering plant is an industrial facility that specializes in processing “by-products” from meat production. This includes non-edible meat scraps, bones, fat, offal, and whole animal carcasses left over from slaughterhouses, butcher shops, restaurants, and farms.
These plants use a process called “rendering,” where these raw materials are cooked at high temperatures to kill pathogens, reduce moisture, and separate the fat from the protein and minerals.
Rendering is a cornerstone of sustainability and public health in the animal agriculture industry.
ASTW There are two main processing methods and 2 addition process available
LTR = Low Temperature Rendering
HTR (Continuous System) = High Temperature Rendering Plant
HTR (Batch System) = High Temperature Rendering Batch System
BDP = Blood Drying Plant
Low Temperature Rendering plants – LTR: for continuous processing of by-products such as bovine (beef), ovine (sheep) or chicken into high quality meat and bone meal and tallow.
The material is scanned for steel scrap in a metal detector, pre-breaker and fine pre breaker the material into small pieces about 25mm. The material is then cooked in a continuous pre-heater/cooker at temp. 95 ºC. The cooked material is pressed in a slow rotating twin crew press to separate press cake and press water which is separated to stick water and tallow in a 3- phase decanter and purifier separator. The solid are dried to meat and bone meal in a disc dryer and tallow is purified (polished), and can be further vacuum dried to remove all traces of water. The meal is cooled and ground in a hammer mill for storage. The greatest advantage of the gentle Low Temp Rendering process is that the chicken meal
and oil is of high quality if fresh raw material.
Main advantages:
The LTR plant produces a quality meat and bone meal and tallow and allows the use of WHE – waste heat evaporator that reduces the steam consumption by up to 50%, allowing steam consumption to be 550-600 kg steam per 1 ton raw material at about 65% moisture. All LTR components (except decanters and separators) are slow rotating machines and have low wear for long and reliable lifetime. Components are high quality like SEW gear boxes and Spirax steam equipment, sensors from VEGA and Endress Hauser. No steel material or parts are from low-cost countries.

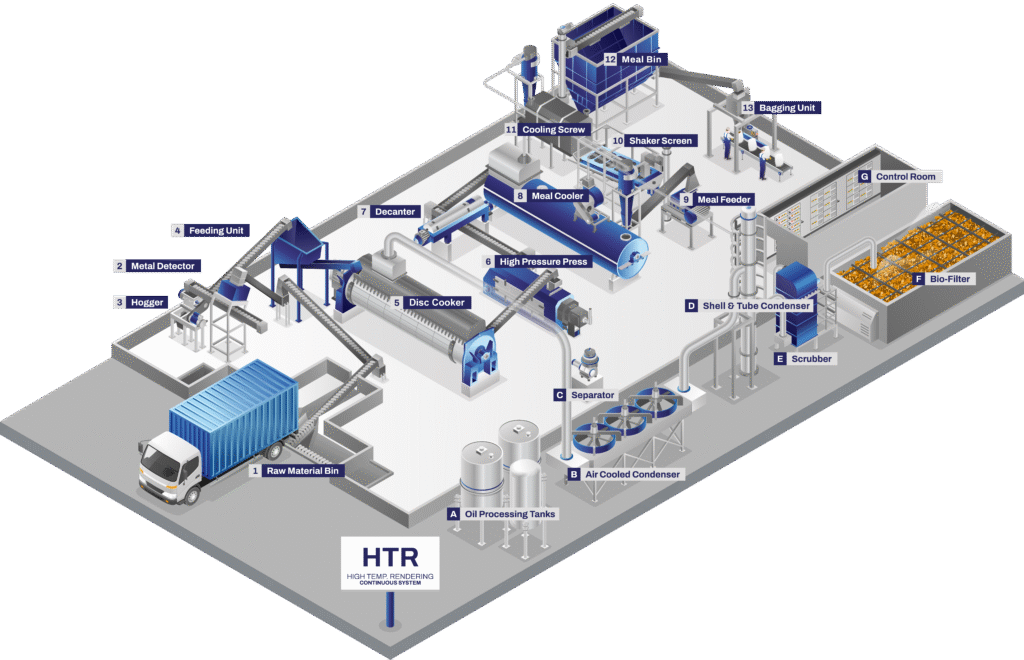

A High Temperature Rendering (HTR) Plant is a facility that processes animal by-products (such as offal, bone, and fat) by applying high heat for a significant period of time to sterilize the material, evaporate moisture, and separate the fat from the protein solids.
It is one of the oldest and most traditional methods of rendering and is often categorized as a Dry Rendering process.
The material is scanned for steel scrap in a metal detector, cut in a pre-breaker to 50 mm and then in a fine-breaker to 16 mm. The material melts in the cooker and is cooked in a bath of hot tallow at high temperature 120- 130 degrees C. The cooker works like a large frying pan where the water is evaporated, and the greasy output (grax) is pressed in a high pressure press to extract most of the tallow. The hot tallow is clarified in a 2-phase decanter and separator/polisher. The press cake is cooled and ground in a hammer mill for storage as an animal feed component. Wool or hair in the material is partially hydrolysed due to the high frying temperature, and separated in the shaker screen before grinding to meal in the hammer mill.
Main advantages:
The advantage of the high temp process is that it is a simple process and that the cooker can be of relatively small size but with a high evaporation capacity up to 24 kg per m2 heating surface per hour.
The HTR process is somewhat simpler than the LTR process, but not as energy efficient.

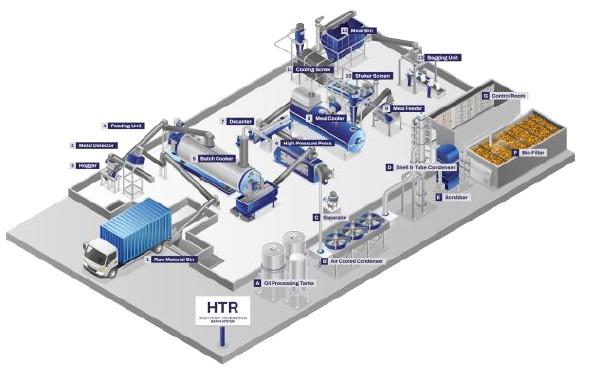

The batch cooker has been used in the rendering industry since the 1940s. It is a simple steam heated machine with a jacketed cylinder and a mixing rotor that can process, cook and dry materials in “one batch”
Today batch cookers are used mainly for small, low cost rendering capacities, while continuous systems are being used for larger capacities. For feathers, the batch cooker is sometimes used together with a more efficient disc dryer and increase capacity about 30%.
Mixed meat and meat, bone and intestines (high temp drying) fry and dry the material in oil bath at 135 deg C, to be used with high pressure press
Mixed poultry offal = offal and feathers mixed together (hydrolyzing and drying) => meal for animal feed and tallow/chicken oil, with high pressure press
Feathers (hydrolyzing and drying) => feather meal for animal feed
Blood (cooking and drying of decanter cake) => blood meal for animal feed
Wool and hair from processing of sheep, hog (swine) (hydrolyzing and drying) => feed back into the rendering process
The batch cooker design has a heated shell with a steam jacket and a heated mixer rotor. There is an inlet chute and a bottom outlet, both with knife gate valves. The body is designed to withstand internal pressure up to 5 bar (operation 3 bar)
Continuous drying of fresh blood to blood meal.
Blood is a valuable, high protein (~ 80%) raw material, but with high water content and low meal yield, typically 13-15%.
Blood meal is sold to animal feed producers (feed mills), or mixed in with the meat and bone meal process.
Using a decanter and a disc drier, ASTW provides a cost-effective method for the production of blood meal.
The indirectly heated disc dryer gives a continuous drying process, specially designed to handle difficult and sticky materials
The Blood drying plant includes the following steps:
